Resin Bond Micron
The most friable type of diamond micron.
Resin Bond micron is made from Resin Bond Mesh. It features multicrystalline structure and provides excellent performance in glass, ceramic polishing and lapping.
Recommended for resin bond and vitrified bond systems.

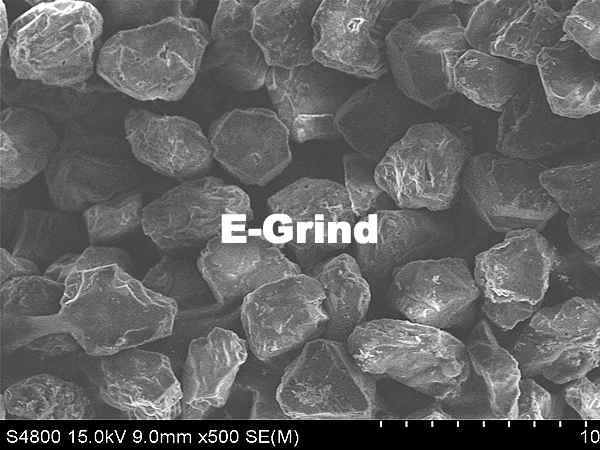

 EA-RW11 |
Light dark, very blocky, very tight particle size distribution, very clean. Premium type. High grinding efficiency, good finishing on surfac |

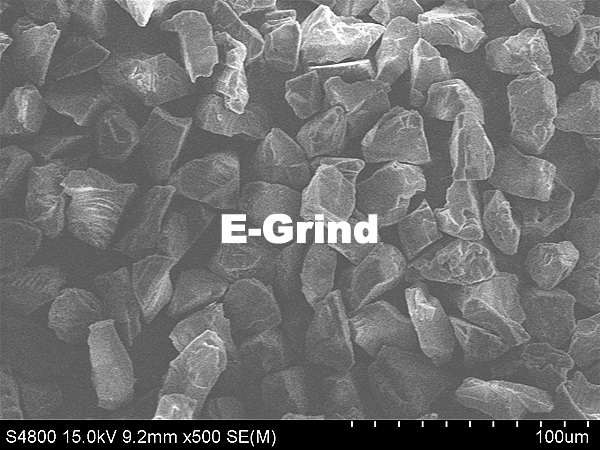

 EA-RW21 |
Dark, blocky, very tight particle size distribution, very clean. Economical type. Provide free grinding, acceptable surface and long life |
|
Characteristics |
◇ Polycrystalline Diamond Structure |
◇ Good self-sharpening Action |
◇ Gain More High Surface Finish |
Quality Control |
◇ Laser Size Analysis Measurement |
◇ Microscope for shape analysis |
◇ ICP for purity analysis |
Sizes Available
0-0.5 |
0-1 |
0-2 |
0.5-1 |
1-2 |
1-3 |
2-4 |
2-5 |
3-5 |
3-6 |
4-6 |
4-8 |
5-10 |
6-12 |
8-12 |
8-16 |
10-15 |
10-20 |
12-22 |
20-30 |
22-36 |
20-40 |
30-40 |
36-54 |
30-60 |
40-60 |
54-80 |
Other sizes are also available according to customer requirement.
